Specifications

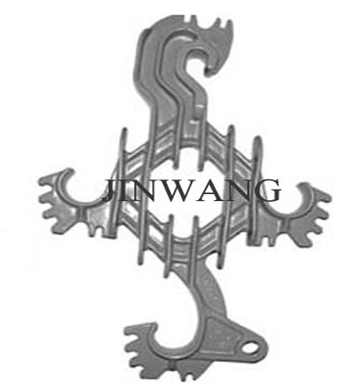

HDPE Spacer
Made of high density gray polyethylene
Applied to electrical tension of 15 and 35 kw
High resistance to traction and impact
Resistance to electrical tracking
Anti UV Protection
May be fixed by elastomeric ring or pre shaped plastic lace
Product Description
The Spacers are designed for use in the Spacer Cable System.
After being installed and clamped to the messenger,the spacers
support,separate and clamp the phase conductors in a
triangular configuration. The spacers are molded using a
proprietary,gray,track resistant,high density polyethylene.
|
|
Benefits:
Quick, easy instalation and removal. Integral clamps for conductors and
messenger, no ring ties required
Clamp design accommodates ful range of conductor and messenger
sizes
Wedge-shaped messenger hook provides maximum grip
Optimum dielectric compatibility with Hendrix Spacer Cable
Excelent weather washing characteristics
Long leakage distance resists flashovers
Close phase spacing minimizes voltage drop
Unique design provides high short circuit strength
Highly resistant to shock/impact/rifle fire
Open diamond design provides neat appearance
Can be instaled with hot line tools

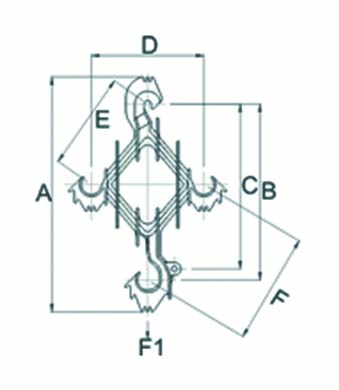

Technical Drawing
Technical Specifications
|
Rated voltage
(KV)
|
Dimensions(mm)
|
|
Min. Leakage Distance(mm)
|
Tension soportable nominal(KV)
|
Weight
(KG)
|
Packing
(PCS)
|
|
A
|
B
|
C
|
D
|
E
|
F
|
±
|
F1
(daN)
|
Frequency sob chuva under rain frequency Low frequency Liuvia
|
Atmosferico Impulse Dry Atmosphere Push Atmosfenico
|
|
15
|
400
|
310
|
190
|
200
|
180
|
180
|
5
|
450
|
280
|
34
|
110
|
0.600
|
25
|
|
25/35
|
550
|
440
|
390
|
300
|
155
|
275
|
5
|
450
|
530
|
50
|
150
|
1.250
|
20
|
Note: OEM drawings of HDPE pin insulators can be met.
Packing
We can offer standard export packing or according to customers' requirements.
For more, please feel free to email us at sales@jinwang-insulators.com,we can meet your demand with best quality and reasonable price.Thank you for your interest in our products.
