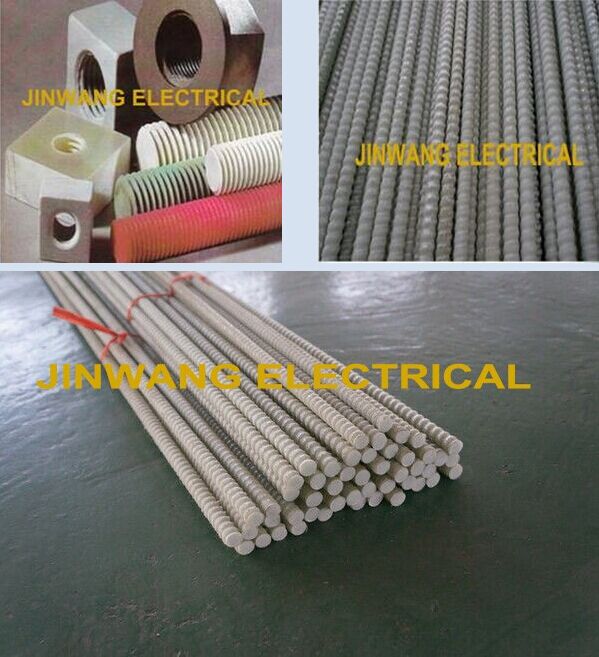

FRP Threaded Rod is made of fiberglass or ECR-fiberglass (FRP/GRP) and epoxy resin, offered nuts are widely used in construction and furniture industries and are available in different dimensions. Beside the standard dimensions our professionals also offer customized dimensions in our products. For the convenience of our clients, we assure safe, effective and time stipulated delivery of our products.
Features
Corrosion resistant
High strength & light weight
Long service life
Fire retardant
Impact resistant
Nonconductive and thermal insulation
Non-magnetic electromagnetic transparency
Dimensional stability, Bright color
Low-maintenance
Applications
Be widely used in many fields.For example, construction industry, transportation industry,electrical industry and communication engineering,such as coal mine tunnel,parking structures, half coal roadway, slope support, subway tunnel,rock surface anchoring, sea wall, dam and airport etc.
|
Technical Specifications |
|
< td >100 (Min)
|
|
PROPERTIES |
M10 |
M12 |
M16 |
M20 |
|
Ultimate thread shear using Fiber glass nut (KG) |
2900 |
3886 |
4972 |
14072 |
|
Specific Gravity |
2.0 +0.2 |
2.0 +0.2 |
2.0 +0.2 |
2.0 +0.2 |
|
Tensile Strength (MPA) |
750 (Min) |
750 (Min) |
750 (Min) |
750 (Min) |
|
Cross Breaking Strength (MPA) |
900(Min) |
900(Min) |
900(Min) |
900(Min) |
|
Compressive strength (Kj/m 2) |
100(Min) |
100(Min) |
100(Min) |
|
|
Water Absorption ( By Weight) |
0.1 % |
0.1 % |
0.1 % |
0.1 % |
Electrical Strength, Min (Proof Voltage at
90 0C in oil) Radial (KG/mm) Axial (Kv / 25mm) |
10 (Min) 50 (Min) |
10 (Min) 50 (Min) |
10 (Min) 50 (Min) |
10 (Min) 50 (Min) |
|
Insulation Resistance (OHMS) |
10 10 (Min) |
10 10 (Min) |
10 10 (Min) |
10 10 (Min) |
|
Martens Heat Distortion Temp ( 0 C) |
200 (Min) |
200 (Min) |
200 (Min) |
200 (Min) |
