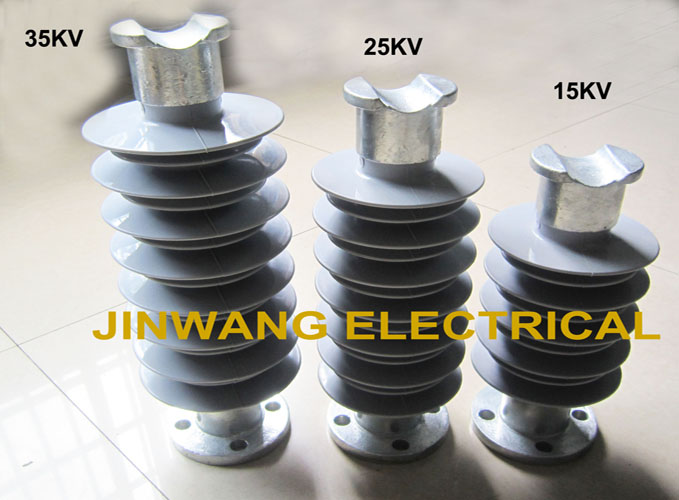

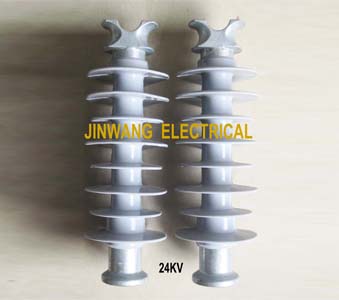

Composite pin insulator is applicable for high-voltage line facilities. The insulator has good water-repellent, anti-aging and anti-leakage properties. And it is also featured by high resistance to bending and high mechanical strength. It is easy for installation and its installation dimensions of top and bottom parts are the same with those of corresponding porcelain pin type so that they are interchangeable. Product technical performance parameters meet the GB/T19519-2004 and GB/T20142-2006 standard requirement.
Features
* The silicon rubber shed, designed according to the aerodynamics principle, use the whole-moulding method, to make sure the validity of total creepage distance under every climate and nasty conditions, as well as improved the pollution discharge of the insulators.
* The fiber rod uses the ECR high-temperature and acid-proof material.
* The end fitting connection adopts the zinc cover protection, supersonic monitor and coaxial constant compression controlled by computer, finished with good appearance and high quality.
* Excellent electric corrosion-proof property.
* High mechanical intension.
* Light weight and easy installation.

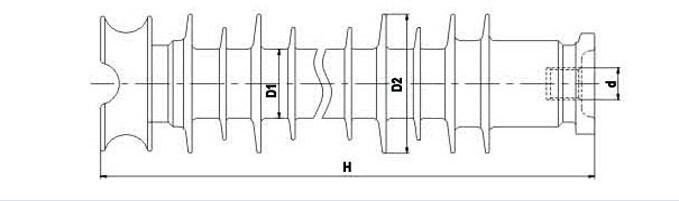

Technical drawings
Main Technical Data
|
Type
|
Rated voltage (KV)
|
Speci铿乪d mechanical load
|
Section length (mm)
|
Min Arc distance (mm)
|
Leakage
distance (mm)
|
Lightning impulse
withstand BIL
(KV)
|
Power frequency withstand (wet)
(KV)
|
|
FP1-24/12L20
|
24
|
12.5
|
305
|
360
|
685
|
160
|
70
|
|
FZSW7-15/12.5
|
15
|
12.5
|
296
|
215
|
625
|
150
|
70
|
|
FZSW7-25/12.5
|
25
|
12.5
|
352
|
278
|
870
|
185
|
75
|
|
FZSW7-35/10
|
35
|
10
|
405
|
335
|
1156
|
215
|
10
|
Note: According to user requirements, to product the production with special connection structure and the height.
|
Service
* Supply quality products with competitive price & excellent service
* Quality first, customer first, safety first
* Strict quality management for composite pin insulator
* reasonable advice to each project
* regular order track information
* excellent after sale service for composite pin insulator
* test report and photos of test before delivery
* photos of packing and container loading before shipping
|
