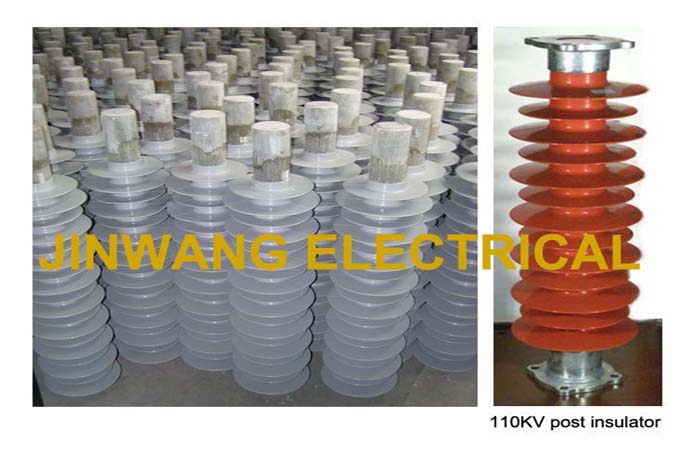

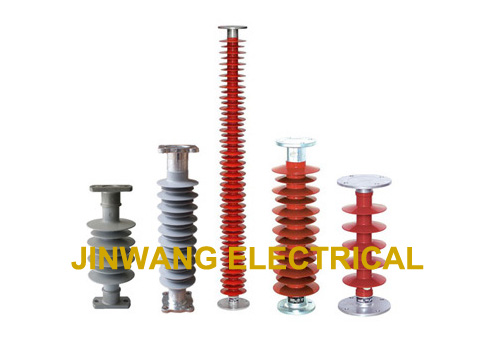

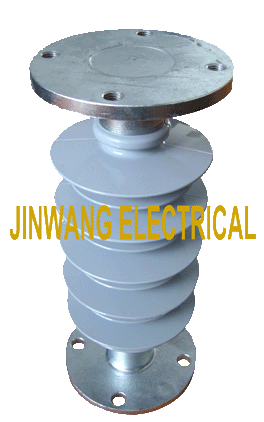

This kind of product is applied to power station facilities, and has features of good water repellence, anti-ageing, resistance to tracking and erosion has high tensile strength and bending strength, high shock resistance, good shock and brittle fracture prevention, light weight, easy to install, and the installation dimensions of top and base are the same with those of porcelain post type, they can be exchanged to use each other.
|
Pecifications
Certificated by IEC ANSI GB ISO9001
We can design and produce according to the drawings.
We supply insulators with reliable quality reasonable price
and good service.
Features
Applicable to high voltage ine service
Good hydrophobicity,Anti-ageing
Anti-leakage trace,Electrical erosion proof
High tensile strength,bending strength
Strong mechanical strength
Shock resistance,Good quakeproof and Prevention of brittle failure
Light weight,Easy installation
The installation size of top and bottom are same as that of
porcelain post insulator.so they can be used interchangeably
|
 |

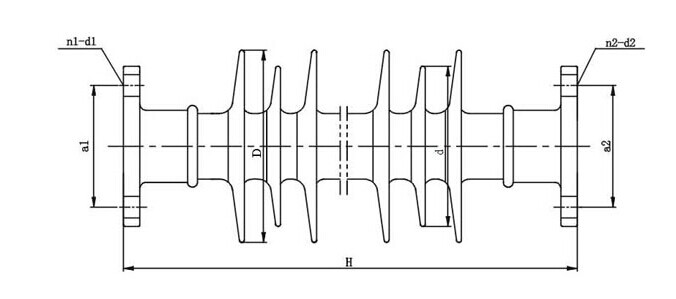

Technical drawings
.jpg)
Main Technical Parameters
|
Figure.No
|
Type
|
Rated Voltage
|
Specified Mechanical Bending Load
|
Secion Length
|
Min arcing distance
|
Min creepage distance
|
Lightning withstand voltage
|
Wet power frequency voltage
|
|

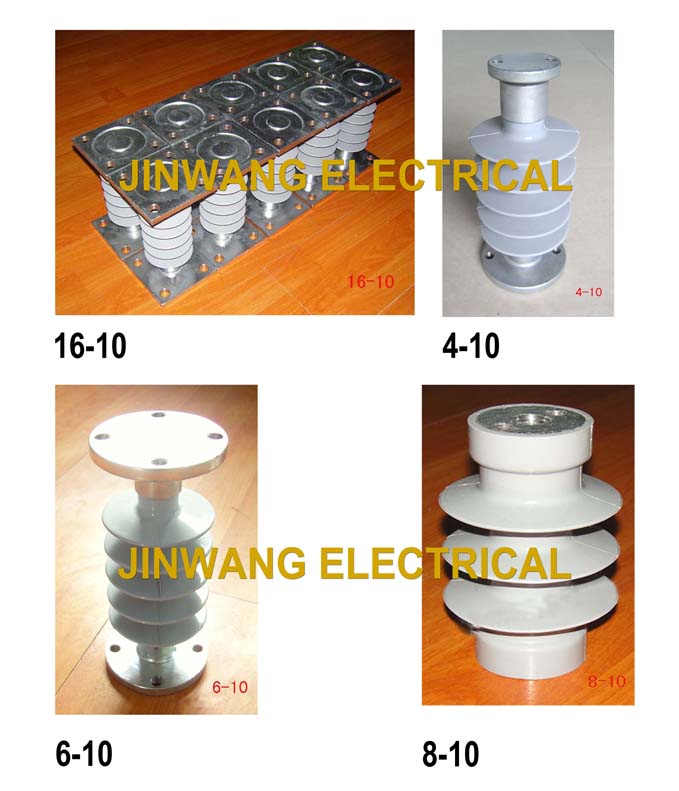

1
|
16-10
|
10
|
16
|
215
|
160
|
377
|
85
|
48
|
|
2
|
4-10
|
10
|
5
|
215
|
160
|
377
|
85
|
48
|
|
3
|
6-10
|
10
|
5
|
215
|
160
|
377
|
85
|
48
|
|
4
|
8-10
|
10
|
8
|
120
|
130
|
220
|
75
|
42
|
|
5
|

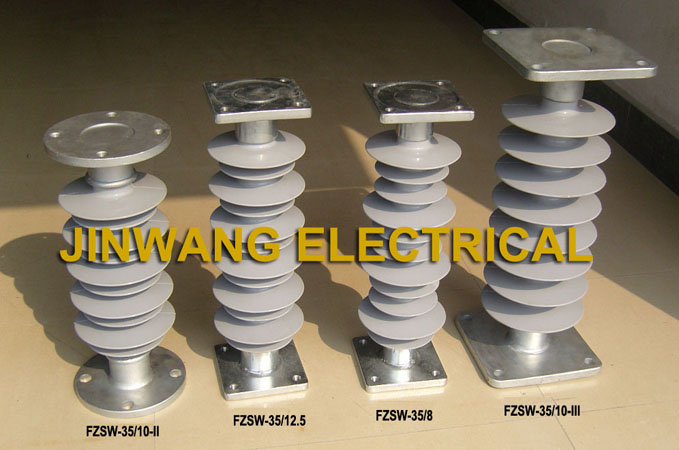

FZSW-35-10-II
|
35
|
10
|
400
|
325
|
1100
|
200
|
100
|
|
6
|
FZSW-35/12.5
|
35
|
8
|
440
|
380
|
1072
|
210
|
125
|
|
7
|
FZSW-35/8
|
35
|
8
|
440
|
380
|
1072
|
210
|
125
|
|
8
|
FZSW-35/10-III
|
35
|
10
|
500
|
433
|
1200
|
210
|
125
|
|
9
|
FZSW-110/5
|
110
|
5
|
1050
|
980
|
2660
|
550
|
230
|
|
10
|
FZSW3-275/10
|
275
|
10
|
2785
|
2660
|
8385
|
1500
|
800
|
|
11
|
FZSW1-420/8
|
420
|
8
|
4000
|
3650
|
13035
|
1900
|
850
|
|
12
|
FZSW-500/5.6
|
500
|
5.6
|
4230
|
3880
|
12600
|
1950
|
850
|
We also can design and tailor-made various products with special specification according to customers' drawings and requirements

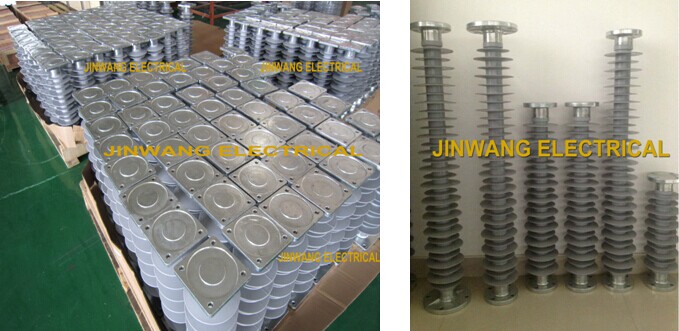

Our Services
Our company always sticks to the business concept of “basing on science & technology, quality first, good faith highest, keep improving”, and observe the tenet of “specialization, good faith, service, innovation, quality and benefit”. We’d like to sincerely provide high-quality products and service to clients both at home and overseas for mutual benefit. We warmly welcome friends all over the world to come and visit our company or contact us to negotiate business.
.jpg)
.jpg)
.jpg)
.jpg)
For more, please download our catalogue or please feel free to email us at sales@jinwang-insulators.com,we can meet your demand with best quality and reasonable price.Thank you for your interest in our products.
