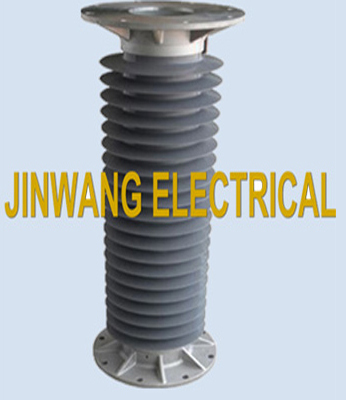

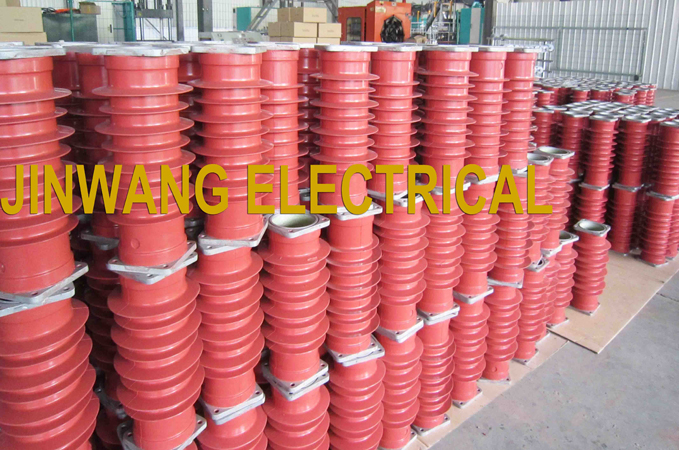

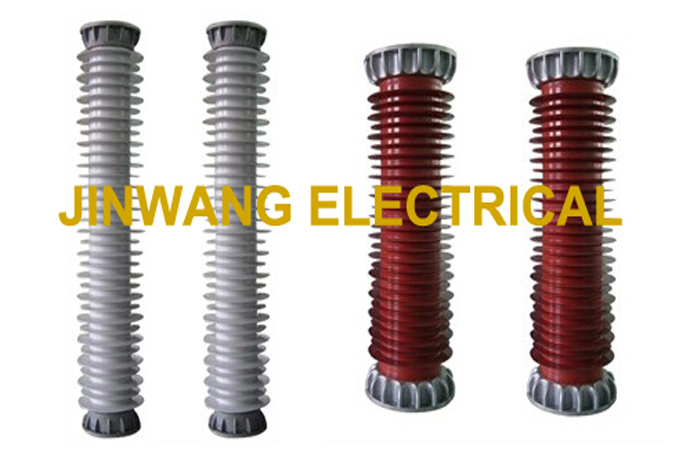

Composite hollow insulator are composed of FRP tube with silicon rubber housing and metal flanges,which is suitable for indoor and outdoor HV equipment.Developed since thirty years while gained experience in service near fifteen years,composite hollow insulators are more advanced than porcelain insulator,especiclly in specific requirement and operation environment,it behaves prethy well in respect of serviee safety and handling.the insulators conform to GB/T21429-2008.
Features
* Safety, In case of internal over-pressure or external man-made damages It leads to less harn to nearby equipment compared with porcelain insulator
* Light weight,easy transportation and handling with low damages
* High safety in earthquake-prone--No need for shock damper

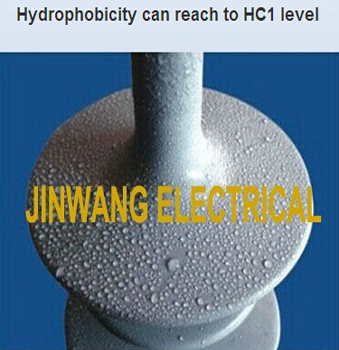

* Excellent anti-pollution performance
* Unique anti-ageing performance proven by successful 15 years long experience in service
* Much shorted lead time compared with porcelain insulator
* Safety material health
|
.jpg)
|
Application
Composite hollow insulator is used for external insulation or support for following equipment:
* Bushings
* Arc-extinguished chambers and support insulators for circuit breakers
* CT/PT,transformer bushings
* Cable endings
* Surge aresters
|
Production Rang
*Hollow insulators with rated voltage from 35kV up to 1000kV.
* Solid core post insulators with rated voltage from 10kV up to 220kV.
* Hollow insulators used for GIS bushing,PT,CT,
transformer bushings,capacitors,switchgears and voltage
regulators,cable terminal,as well as arrester housings,
switch post,fuse cutouts.
|
.jpg) |

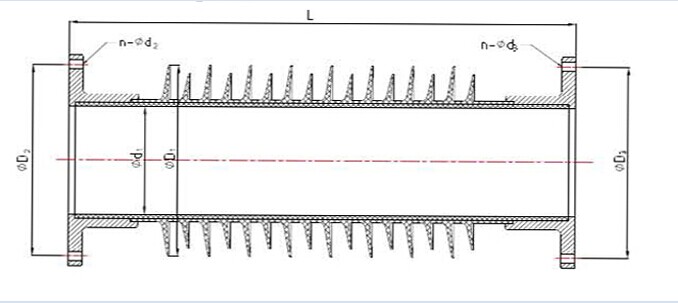

Technical drawings
.jpg)
Main technique data
|
No.
|
Type
|
Rated voltage (kV)
|
Section height
(mm)
|
Minimum arcing distance (mm)
|
Minimum nominal creepage distance (mm)
|
Power frequency voltage
≥
|
Lightning impulse withstand voltage
≥
|
Weight
(kg)
|
|
Dry
|
Wet
|
|
35702
|
FHW2-35/锟?76×580
|
35
|
580
|
495
|
1300
|
122
|
109
|
237
|
23.24
|
|
110700
|
FHQW1-110/锟?45×1500
|
110
|
1500
|
1380
|
3920
|
300
|
230
|
550
|
36.20
|
|
220702
|
FHQW2-220/锟?40×2403
|
220
|
2403
|
2245
|
7765
|
295
|
235
|
950
|
82.03
|
|
275702
|
FHQW3-275/锟?40×2735
|
275
|
2735
|
2245
|
9025
|
295
|
235
|
950
|
53.66
|
|
330700
|
FHQW4-330/锟?75×3200
|
330
|
3200
|
2986
|
12820
|
950
|
760
|
1175
|
224.10
|
|
500700A
|
FHQW5-500/锟?00×4600
|
500
|
4600
|
4255
|
19670
|
1175
|
940
|
1500
|
598
|
We also can design and tailor-made various products with special specification according to customers' drawings and requirements.
.jpg)
.jpg)
For more, please download our catalogue or please feel free to email us at sales@jinwang-insulators.com,we can meet your demand with best quality and reasonable price.Thank you for your interest in our products.
