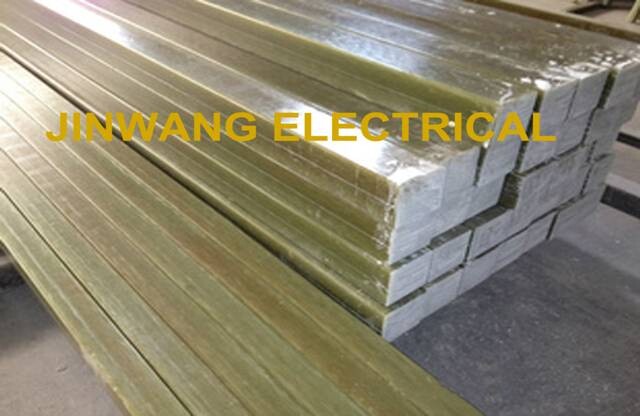

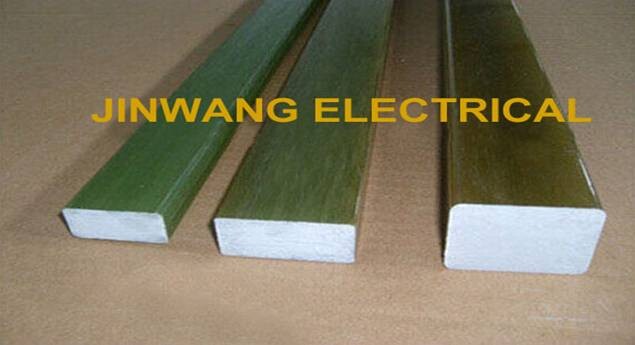

We can produce epoxy or vinyl pultrusion rectangular flat bars based on customers' requirments. Temperature class are of F & H.
Main Raw Material
Reinforcement material:fiberglass.
Basis material:unsaturated polyester resin, epoxy resin, vinylester resin.
FRP Profile Properties
Corrosion resistence, aging resistence.
Waterproof, fireproof.
Light weight,high strength,impact resistence.
Good dimension stability.
Insulation,good magnetic permeability.
Bright color,attractive appearance.
Long service life,maintenance free.
Easy to cut and install.
Application of FRP Profile
electrical&electronics marketscable tray,radome,insulation ladder,etc.
Chemical anti-corrosion marketsgrating floor, handrail, working platform, undergrand pression pipe, stairs,etc.
building construction marketsoversize bridge protection closed system,movable house structure,working platform,
window frame, window sash and its components,etc.
foundation engineering marketsfreeway antiglare shield and its handrail,lamp post,water treatment,bracket for hug
industry cooling tower,etc.
Technical Specification
|
No.
|
Parameters
|
Unit
|
Specification
|
|
1
|
vertical bending strength
|
MPA
|
≥340
|
|
2
|
parallel layer impact strength charpy tye(notch specimen)
|
KJ/m2
|
≥33
|
|
3
|
vertical layer dielectric strength(in transformer oil,90±2°C)
|
MV/M
|
≥14.2
|
|
4
|
parallel layer puncture voltage (in transformer oil,90±2°C)
|
KV
|
≥35
|
|
5
|
relative dielectric constant
|
-
|
≤5.5
|
|
6
|
dielectric loss factor
|
-
|
≤0.04
|
|
7
|
insulation resitance after immersion
|
Ω
|
≥5X104
|
|
8
|
water absorption(at 20±2°C,24h)
|
%
|
≤0.05
|
|
9
|
colour
|
-
|
natural colour
|
Our Current Dimensious
|
Height (mm)
|
Width (mm)
|
Height (mm)
|
Width (mm)
|
|
10
|
22
|
10
|
30
|
|
14
|
22
|
16
|
22
|
|
16
|
30
|
20
|
30
|
|
20
|
40
|
25
|
50
|
|
30
|
50
|
40
|
50
|
|
40
|
60
|
50
|
50
|
|
50
|
60
|
60
|
60
|
We can make new molds and produce according to customers’ requirements.
