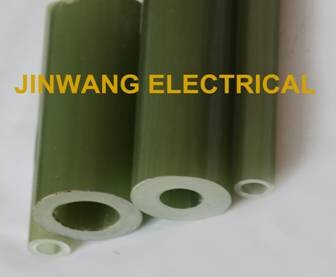

The Fiberglass pultrusion tube is produced with fiberglass materials and with pultrusions production process. The production is continuous with 24h every day. The tube has most of the Fiberglass advantages, such as strong, light in weight, embedded rich colors, non conductive, long service life, could be easily painted and coated when it is necessary.
High quality fiberglass pultrusion tubes is manufactured by high-strength fiberglass as reinforcing material, thermosetting resin as the base, and then taken shape on a special pultruded mold, where the high temperature activates the resin to cure.
Features
* Light weight and high strength
* anti-ageing
* aesthetically pleasing appearance
* environmental friendliness
NOTE
* The color is green and brown generally; other colors are available upon request.
* IEC, ANSI, GB and other international standards are applicable.
* Additional processing such as grounding, cutting, threading, drilling are available.
Technical Parameters of fiberglass pultrusion Tube
|
No.
|
Description
|
Unit
|
Value
|
|
1
|
Density
|
g/cm3
|
1.8-2.0
|
|
2
|
Thermal Deflection Temperature
|
鈩?/p>
|
180 200 240
|
|
3
|
Impulse Strength
|
kV/m2
|
90
|
|
4
|
Bending Strength(Room Temp)
|
N/mm2
|
390
|
|
5
|
Water Absorption
|
mg
|
20
|
|
6
|
Insulation Resistance
|
|
1.0* 1013
|
|
7
|
Electrical Strength
(in 90鈩?nbsp;transformer oil)
|
MV/m
|
10
|
|
8
|
PTI
|
|
600
|
|
9
|
Flammability
|
Class
|
FV0
|
|
10
|
Temperature Index(TI)
|
鈩?/p>
|
155 180 220
|
Our current dimensious
|
Inner Diameter
(mm)
|
Outer Diameter
(mm)
|
Inner Diameter
(mm)
|
Outer Diameter
(mm)
|
|
6
|
10
|
7
|
11
|
|
12.5
|
18
|
12.5
|
20
|
|
12.5
|
24
|
15.5
|
28
|
|
20
|
30
|
20
|
35
|
|
20
|
40
|
20
|
50
|
|
20
|
60
|
20
|
70
|
|
32
|
50
|
34
|
60
|
|
40
|
60
|
42
|
70
|
We can make new molds and produce according to customers’ requirements.
